Façade Rivets
Rivets are mechanical fasteners consisting of a smooth cylindrical shaft with a head on one end. When installed, the rivet is placed in a pre-drilled hole, and the tail is deformed, expanding to hold the materials together. This results in a strong, permanent joint ideal for various construction applications, especially in façade installations.
With over 30 years of experience, Mainline Products internationally recognised for their rainscreen façade fixtures and fittings. Our comprehensive range of façade rivets can be painted to sample to ensure an identical is match to leading façade panel manufacturers’ colour and material specifications and carry our unique 25-year warranty against colour fade or peel.
Filter
47 results
20
- 10
- 15
- 20
- 25
- 30
- 50
Best selling
- Featured
- Best selling
- Alphabetically, A-Z
- Alphabetically, Z-A
- Price, low to high
- Price, high to low
- Date, old to new
- Date, new to old
Sort
Sort by:
- Featured
- Best selling
- Alphabetically, A-Z
- Alphabetically, Z-A
- Price, low to high
- Price, high to low
- Date, old to new
- Date, new to old
-
Aluminium/Stainless Dome Head Large Flange Rivet - 4.8 x 10 x 16 - 100 Pack
Dome Head Large Flange Rivets Technical Specifications: Body Material Aluminium Stainless Mandrel Material 304 Stainless Steel Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 4.8mm Length 10mm Head 16mm Grip Range 1.5 - 6.5mm Aluminium Grade AIMg 2.5- from $61.00
- from $61.00
- Unit price
- / per
-
A4 Stainless Steel Dome Head Large Flange Rivet - 4.8 x 10 x 16 - 100 Pack
Technical Specifications: Body Material A4 Stainless Steel Mandrel Material A4 Stainless Steel Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 4.8mm Length 10mm Head 16mm Grip Range 4 - 6mm- from $97.00
- from $97.00
- Unit price
- / per
-
A4 Stainless Steel Dome Head Large Flange Rivet - 4.8 x 14 x 16 - 100 Pack
Technical Specifications: Body Material A4 Stainless Steel Mandrel Material A4 Stainless Steel Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 4.8mm Length 14mm Head 16mm Grip Range 8 - 10mm- from $147.00
- from $147.00
- Unit price
- / per
-
Aluminium/Stainless Dome Head Rivet - 4 x 9.5 x 8 - 100 Pack
Dome Head Rivets (Aluminium Body / Stainless Mandrel) Technical Specifications: Body Material Aluminium Stainless Mandrel Material A2 Stainless Steel Head Type Dome Head Flange Size Standard Box Quantity 100 Diameter 4mm Length 9.5mm Head 8mm Grip Range 1.5 - 6.5mm Aluminium Grade AIMg 3.5...- from $44.00
- from $44.00
- Unit price
- / per
-
A2 Stainless Steel Dome Head Rivet - 4.8 x 12 x 9.8 - 100 Pack
Dome Head Standard Flange Rivet. Stainless body/Stainless mandrel facade rivets. Technical Specifications: Body Material A2 Stainless Steel Mandrel Material A2 Stainless Steed Head Type Dome Head Flange Size Standard Box Quantity 100 Diameter 4.8mm Length 12mm Head 9.8mm Grip Range 3 - 7mm- from $36.00
- from $36.00
- Unit price
- / per
-
Aluminium/Stainless Dome Head Large Flange Rivet - 4 x 18 x 15 - 100 Pack
Dome Head Large Flange Rivets Technical Specifications: Body Material Aluminium Stainless Mandrel Material 304 Stainless Steel Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 4mm Length 18mm Head 15mm Grip Range 8 - 13mm Aluminium Grade AIMg 5- from $53.00
- from $53.00
- Unit price
- / per
-
Aluminium/Stainless Dome Head Large Flange Rivet - 5 x 12 x 14 - 100 Pack
Dome Head Large Flange Rivets Technical Specifications: Body Material Aluminium Stainless Mandrel Material 304 Stainless Steel Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 5mm Length 12mm Head 14mm Grip Range 8 - 10mm Aluminium Grade AIMg 5- from $61.00
- from $61.00
- Unit price
- / per
-
Aluminium/Stainless Dome Head Large Flange Rivet - 5 x 18 x 14 - 100 Pack
Dome Head Large Flange Rivets Technical Specifications: Body Material Aluminium Stainless Mandrel Material 304 Stainless Steel Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 5mm Length 18mm Head 14mm Grip Range 8 - 14mm Aluminium Grade AIMg 5- from $63.00
- from $63.00
- Unit price
- / per
-
Aluminium/Stainless Dome Head Rivet - 4.8 x 10 x 9.5 - 100 Pack
Dome Head Rivets (Aluminium Body / Stainless Mandrel) Technical Specifications: Body Material Aluminium Stainless Mandrel Material A2 Stainless Steel Head Type Dome Head Flange Size Standard Box Quantity 100 Diameter 4.8mm Length 10mm Head 9.5mm Grip Range 1.5 - 6mm Aluminium Grade AIMg 3.5...- from $44.00
- from $44.00
- Unit price
- / per
-
Aluminium/Stainless Dome Head Large Flange Rivet - 5 x 18 x 16 - 100 Pack
Dome Head Large Flange Rivets Technical Specifications: Body Material Aluminium Stainless Mandrel Material 304 Stainless Steel Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 5mm Length 18mm Head 16mm Grip Range 8 - 14mm Aluminium Grade AIMg 5- from $57.00
- from $57.00
- Unit price
- / per
-
Aluminium/Stainless Dome Head Large Flange Rivet - 4.8 x 18 x 16 - 100 Pack
Dome Head Large Flange Rivets Technical Specifications: Body Material Aluminium Stainless Mandrel Material 304 Stainless Steel Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 4.8mm Length 18mm Head 16mm Grip Range 6.5 - 12.5mm Aluminium Grade AIMg 2.5- from $54.00
- from $54.00
- Unit price
- / per
-
Aluminium/Stainless Dome Head Large Flange Rivet - 5 x 25 x 16 - 100 Pack
Dome Head Large Flange Rivets. Technical Specifications: Body Material Aluminium Stainless Mandrel Material 304 Stainless Steel Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 5mm Length 25mm Head 16mm Grip Range 12.5 - 18mm Aluminium Grade AIMg 5- from $59.00
- from $59.00
- Unit price
- / per
-
A4 Stainless Steel Dome Head Large Flange Multi Grip Rivet - 4.8 x 20 x 16 - 100 Pack
Technical Specifications: Body Material Mandrel Material Head Type Flange Size Box Quantity Diameter Length Head Grip Range- from $130.00
- from $130.00
- Unit price
- / per
-
Stainless Steel 120° Countersunk Rivet - 4.8 x 12 x 19
Technical Specifications: Body Material 304 Stainless Steel Mandrel Material 304 Stainless Steel Head Type Countersunk Flange Size N/A Box Quantity 100 Diameter 4.8mm Length 12mm Head 120° Grip Range 5 - 8mm- from $33.00
- from $33.00
- Unit price
- / per
-

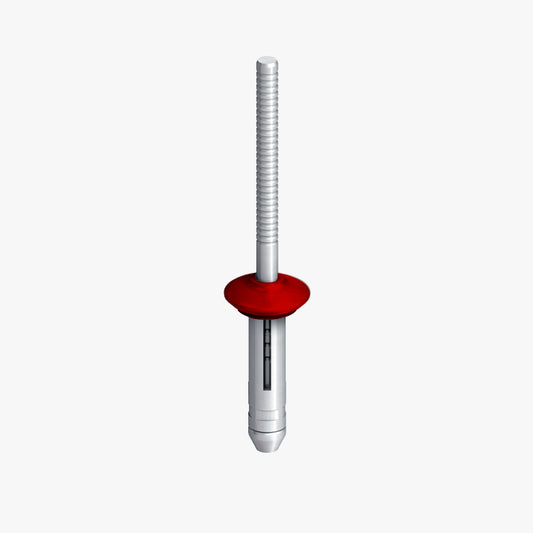

Bulb Tite Rivet - 6.3 x 24 x 13.95 - 100 Pack
Technical Specifications: Body Material Aluminium Mandrel Material Aluminium Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 6.3mm Length 24mm Head 13.95mm Grip Range 3.1 - 9.6mm Aluminium Grade AIMg 3.5 Body, AIMg 5.0 Mandrel- from $140.00
- from $140.00
- Unit price
- / per
-
Bulb Tite Rivet - 5.2 x 31.8 x 12.5 - 100 Pack
Technical Specifications: Body Material Aluminium Mandrel Material Aluminium Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 5.2mm Length 31.8mm Head 12.5mm Grip Range 14.3 - 19.1mm Aluminium Grade AIMg 3.5 Body, AIMg 5.0 Mandrel- from $135.00
- from $135.00
- Unit price
- / per
-
Bulb Tite Rivet - 7.7 x 27.5 x 18.5 - 100 Pack
Technical Specifications: Body Material Aluminium Mandrel Material Aluminium Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 7.7mm Length 27.5mm Head 18.5mm Grip Range 1 - 9.5mm Aluminium Grade AIMg 3.5 Body, AIMg 5.0 Mandrel- from $219.00
- from $219.00
- Unit price
- / per
-
Bulb Tite Rivet - 5.2 x 28.6 x 12.5 - 100 Pack
Technical Specifications: Body Material Aluminium Mandrel Material Aluminium Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 5.2mm Length 28.6mm Head 12.5mm Grip Range 11.1 - 15.9mm Aluminium Grade AIMg 3.5 Body, AIMg 5.0 Mandrel- from $102.00
- from $102.00
- Unit price
- / per
-
Bulb Tite Rivet - 5.2 x 22.2 x 12.5 - 100 Pack
Technical Specifications: Body Material Aluminium Mandrel Material Aluminium Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 5.2mm Length 22.2mm Head 12.5mm Grip Range 4.7 - 9.6mm Aluminium Grade AIMg 3.5 Body, AIMg 5.0 Mandrel- from $83.00
- from $83.00
- Unit price
- / per
-
Bulb Tite Rivet - 5.2 x 25.4 x 12.5 - 100 Pack
Technical Specifications: Body Material Aluminium Mandrel Material Aluminium Head Type Dome Head Flange Size Large Box Quantity 100 Diameter 5.2mm Length 25.4mm Head 12.5mm Grip Range 7.9 - 12.7mm Aluminium Grade AIMg 3.5 Body, AIMg 5.0 Mandrel- from $104.00
- from $104.00
- Unit price
- / per
